MT570 Used
R5 000.00
5kV Insulation Continuity tester
Sold!
Description

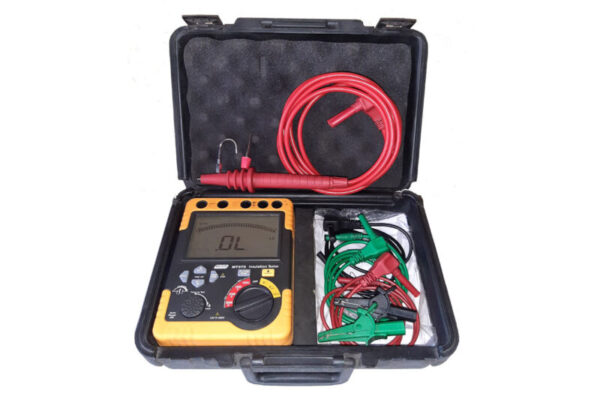

This Used 5kV Insulation Tester is 98% complete kit (the red croc clip is missing) and is supplied with a 90 day warranty!
| Voltage | Max Ω |
Accuracy | |
| Insulation Voltage setting | 500V 1000V 2500V 5000V |
6.00GΩ 6.00GΩ 60.0GΩ 60.0GΩ |
±(2.5% +15) ±(3.0% +15) ±(4.0% +15) ±(4.0% +15) |
| Short Circuit Current | 1.2mA | ||
| Max | Resolution | Accuracy | |
| DC Voltage | 600V | 0.1V | ±(1.0% +5) |
| AC Voltage | 600V | 0.1V | ±(1.5% +15) |
| Resistance | 6.000KΩ | 0.1Ω | ±(1.5% +10) |
| Polarization index | Yes |
| Dielectric absorption ratio | Yes |
| Continuity | Yes |
| Auto discharge | Yes |
| AC Bandwidth | 50.0Hz to 60.0Hz |
| Digital Display | Large Graphical Display |
| Bargraph | Yes |
| Over-range indication | Yes |
| Min Max | Yes |
| Data Hold | Yes |
| Back Light | Yes |
| Enclosure | Robust moulded case |
| Low battery indication | Yes |
| Power source | 8 x LR14 |
| Dimensions | 198 x 148 x 86mm |
| Weight | 1.44g |
Used Major Tech MT570 5kV Insulation Tester User Manual download
