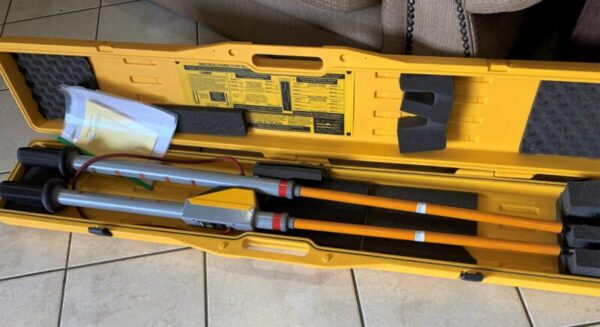

TPC33K / MT33kV
R32 000.00
33kV Phase Comparator
Sold!
Description
TPC33K / MT33kV Phase Comparator 33kV
Features
- High Voltage Phase Comparators/Live Line Tester/Voltage Detector
- No user assembled parts
- Dual colour coded scale (%, VAC)
- Neon indicator lit when > 1200 VAC
- Measure and test phase to earth phase to phase
- High quality fibreglass wound rod
- Self powered operation – no battery
- Current is limited to Milliampere
- Grounded or ungrounded systems
- Lightweight, robust and compact
- High immunity to interference fields
- Silicone handles
- Specified by town councils
Technical Overview
| ELECTRICAL | |
| Model | TPC33K / MT33kV |
| System Voltage (kV) | 33 |
| Full Scale Voltage (kV) | 36 |
| Total Resistance (MΩ) | 20.1 |
| Response Time | 1 Second |
| Neon Threshold | 1.2 kV |
| MECHANICAL | |
| Total Length (m) | 1.375 |
| Total Weight (kg) | 1.4 |
| Operating Temperature | -25ºC to 55ºC |
| Operating Humidity | 20 to 96% RH |
| Standard Accessories | Carry Case, Instruction Manual, IEC Certificate |
| Optional Accessories | 90º Bend TPCAA90 |
| Certificates | IEC61481:200, IECSPE8561481 |
| Note: * – Standard stock items. |
TPC33K / MT33kV Phase Comparator 33kV Optional Accessory
TPCAA90 – 90º Angle bends
