T4137
R19 309.62
Milliohm Meter Digital Battery Powered
Description

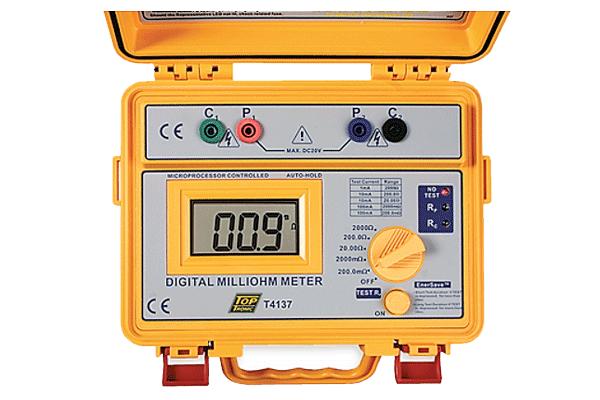

TopTronic T4137 milliOhm Meter is a microprocessor controlled 4 wire instrument. It is light weight, battery operated and water proof when the lid is closed.
Features
- Digital Milliohm Meter
- Four terminal measurement
- Large LCD display
- 12V DC battery powered
- Robust lightweight case with O-ring seal
- Bonding tests
- Earth continuity testing
- Designed to SANS 10142
TopTronic T4137 milliOhm Meter Technical Overview
| Feature | Range | Accuracy |
| Resistance Ranges | 0 to 200Ω in steps of 100µΩ 0 to 2000mΩ in steps of 10mΩ 0 to 20Ω in steps of 1mΩ 0 to 200Ω in steps of 100mΩ |
±0.5% of reading + 2 digits |
| Test Current | 1mA = 2000Ω range 10mA = 200Ω range 100mA = 2000mΩ range |
|
| Maximum Output Voltage | 20 Volts | |
| Test Current Accuracy | ±0.1% |
Model Specification
| Power Source | 12V DC battery powered, 8 x 1.5V C Batteries Alkaline |
| Standard Accessories | Test Leads, Shoulder Belt |
| Certificates | Certificate of Conformance |
