T1851
R7 245.59

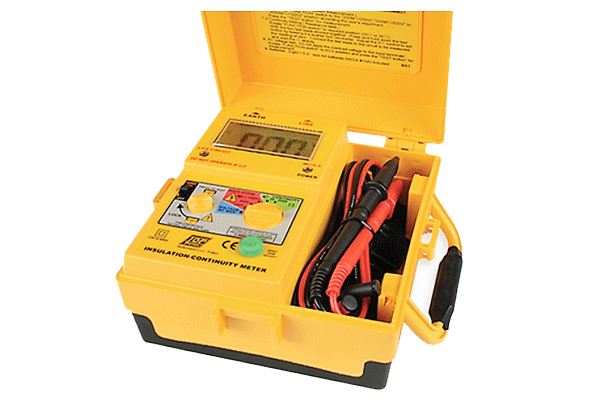

Insulation Tester Digital 250 / 500 / 1000V
Description
Features
- Digital insulation tester
- Continuity buzzer
- Live circuit warning
- 210 mA continuity short circuit current
- AC voltage measurement
- Auto power off
- Large display
- Auto discharge
- Live circuit indication
Technical Overview
| Feature | Parameter | Accuracy |
| Test Voltage range | 250 V 500 V 1000 V |
|
| Insulation Resistance range | 0-200 MΩ 0-200 MΩ 10-2000 MΩ |
±1.5 % + 5 Digit |
| Output Voltage on open circuit | Rated test voltage +10% | |
| Short Circuit Current (Max) | 1 mA | |
| Continuity Range | 0-2 kΩ | |
| Open circuit terminal voltage | 4.45 V DC Approx | |
| Short circuit terminal current | 210 mA DC Approx | |
| Voltage Measurement | 0 -500 VAC | ±1.5% + 3 Digit |
| Counts | 3 -1/2 Digits | 2000 Counts |
Model Specification
| Power Source | 8 x 1.5V AA Batteries |
| Certificates | UL, , IEC61010-1. Certificate of Conformance |
