Description
Features

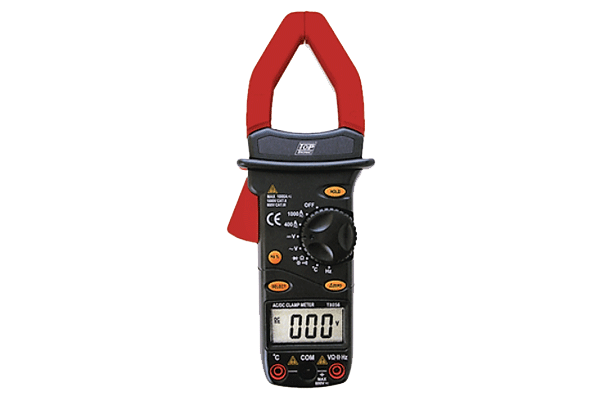

- Clamp meter
- Jaw Size 42 mm
- Duty cycle
- Diode
- Continuity
- Auto power off
- Relative zero
- Data hold
Technical Overview
Feature | Parameter | Accuracy |
DC Current | 400, 1000A | ±3.0% + 3 Digit |
AC Current | 400, 1000A | ±3.0% + 3 Digit |
DC Voltage | 60m, 600m, 6, 600, 1000V | ±0.8% + 3 Digit |
AC Voltage | 60m, 600m, 6, 600, 1000V | ±1.0% + 10 Digit |
Resistance | 400, 4k, 40k, 400k, 4M, 40MΩ | ±2.0% + 3 Digit |
Temperature | -40 to 750ºC | ±1.0% + 6 Digit |
Frequency | 40, 400, 4k, 40k, 100kHz | ±2.0% + 1 Digit |
Capacitance | 4n, 40n, 400n, 4µ, 40µF | ±4.0% + 10 Digit |
Counts | 3 -3/4 Digits | 4000 Counts |
Model Specification
Power Source | 1 x 9V Battery |
Standard Accessories | Carry Case, Temp Probe TBMTEMPPROBE |
Certificates | UL, IEC61010-1. Certificate of Conformance |
