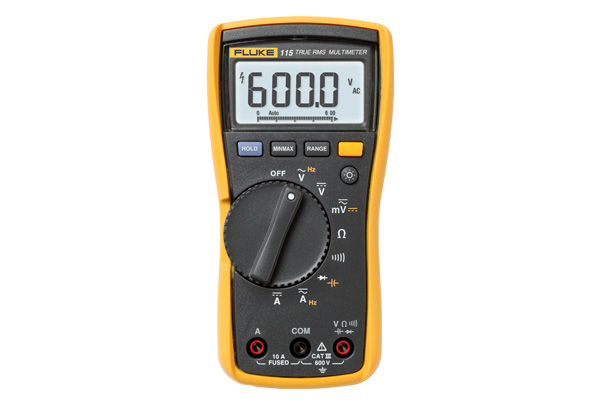

Fluke 115

Description

Dependable DMMs for electrical and HVAC purposes

An everyday multimeter for Technicians, the 115 is for electrical and electronic testing in field service, industrial and applications where more than the basic functions simplify work

• Min/Max/Avg to record signal fluctuations

• Large display and white LED backlight to work in poorly lit areas more effectively

• Compact ergonomic design for one-handed operation

We test our 115 Multimeters for safe use in CAT III 600 V environments. This is the ideal meter for your electrical work because:

The large white LED backlight helps you work in poorly lit areas

Specifications

DC millivolts
- Range/resolution 600.0 mV / 0.1 mV
- Accuracy ±0.5% 2
DC volts
- Range/resolution
  - 6.000 V / 0.001 V
    60.00 V / 0.01 V

    600.00 V / 0.1 V
- Accuracy ±0.5% 2
Auto volts
- Range/resolution 600.0 V / 0.1 V
- Accuracy
  - 2.0% 3 (DC, 45 Hz to 500 Hz)
    4.0% 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS
- Range/resolution 600.0 mV / 0.1 mV
- Accuracy
  - 1.0% 3 (DC, 45 Hz to 500 Hz)
    2.0% 3 (500 Hz to 1 kHz)
AC volts¹ True RMS
- Range/resolution
  - 6.000 V / 0.001 V
    60.00 V / 0.01 V

    600.0 V / 0.1 V
- Accuracy
  - 2.0% 3 (DC, 45 Hz to 500 Hz)
    4.0% 3 (500 Hz to 1 kHz)
Continuity
- Range/resolution 600 Ω / 1 Ω
- Accuracy Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of
  500 μs or longer.
Ohms
- Range/resolution
  - 600.0 Ω / 0.1 Ω
    6.000 kΩ / 0.001 kΩ

    60.00 kΩ / 0.01 kΩ

    600.0 kΩ / 0.1 kΩ

    6.000 MΩ / 0.001 MΩ
  - Accuracy 0.9% 1
- Range/resolution 40.00 MΩ / 0.01 MΩ
  - Accuracy 5% 2
Diode test
- Range/resolution 2.00 V / 0.001 V
- Accuracy 0.9% 2
Capacitance
- Range/resolution
  - 1000 nF / 1 nF
    10.00 μF / 0.01 μF

    100.0 μF / 0.1 μF

    9999 μF / 1 μF

    100 μF to 1000 μF
  - Accuracy 1.9% 2
- Range/resolution > 1000 μF
  - Accuracy 5% 20%
AC amps True RMS (45 Hz to 500 Hz)
- Range/resolution
  - 6.000 A / 0.001 A
    10.00 A / 0.01 A
- Accuracy
  - 1.5% 3
    20 A continuous overload for 30 seconds max
DC amps
- Range/resolution
  - 6.000 A / 0.001 A
    10.00 A / 0.01 A
- Accuracy
  - 1.0% 3
    20 A continuous overload for 30 seconds max
Hz (V or A input)²
- Range/resolution
  - 99.99 Hz / 0.01 Hz
    999.99 Hz / 0.1 Hz

    9.999 Hz / 0.001 Hz

    50.00 Hz / 0.01 Hz
- Accuracy 0.1% 2

All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
Accuracies are specified as ±([% of reading] [counts])

Maximum voltage between any terminal and earth ground 600 V

Environmental
- Operating Temperature -10°C to 50°C
- Storage Temperature -40°C to 60°C
Safety
- Surge protection
  - 6 kV peak per IEC 61010–1 600 V CAT III,
  - Pollution Degree 2
- Fuse for A input
  - 11 A, 1000 V FAST Fuse (Fluke PN 803293)

Display
- Digital: 6,000 counts, updates 4 per second

Bar graph
- 33 segments, updates 32 per second

Features
- Large white LED backlight to work in poorly lit areas
- True RMS for accurate measurements on non-linear loads
- Measures 10 A (20 A overload for 30-seconds)
- Resistance, continuity, frequency and capacitance
- Min/Max/Average with elapsed time to record signal fluctuations
- Compact ergonomic design for one-handed operation
- Compatible with optional magnetic hanger (ToolPak™) for hands free operation
- CAT III 600 V safety rated

Mechanical & General
- Size 167 x 84 x 46 mm
- Weight 550 g
- Warranty 3 years
- Battery Life 9 volt Alkaline:~400 hours typical, without backlight

Included accessories:
- 4 mm silicone test lead set
- Holster
- User manual

Optional Accessories
- Cases, bags and holsters
- Meter hanger kits
- Probes
  - HV
  - Current clamp
  - Fibre Optic
  - Pressure
  - Temperature
- Test Leads
- Clips
- Probe lights
