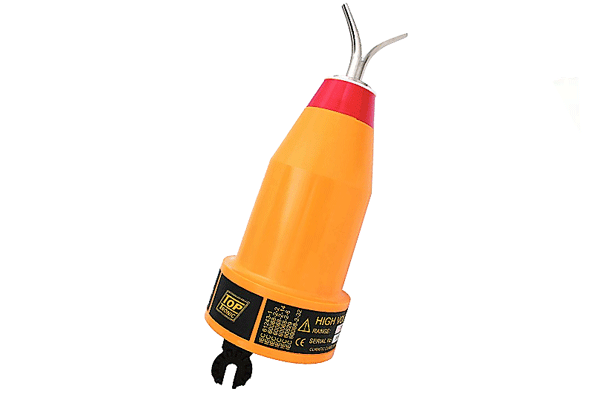

T220HVD
R13 199.20
High Voltage Detector 6.6/132kV with Case
Description
Features
- Contact Capacitive High Voltage Detector
- Self starting and automatically activated when the High Voltage is applied to the contact electrode
- Use on sinusoidal (50 or 60Hz) High Voltage Systems
- Models are available to cover systems voltage from 6.6kV to 132kV
- IEC 61243-1 for voltages above 1kV 50/60Hz
- Check system is dead or alive
Technical Overview
| System Voltage | 6.6/132kV |
| Threshold Set within Range | 1.65kV to 14.6kV |
| Response Time | <1 Sec |
| Auto-OFF | ±3 Min |
| Bridging Protection | Yes |
| Spark Protection | Yes |
| Battery Low | <7V |
| Threshold | 2.5kV |
| Battery Current | <30mA |
| Green = Armed | Yes |
| Red = V Detected | Yes |
